원래 장소:
후난, 중국
브랜드 이름:
PINSHENG ENERGY
모델 번호:
PE-W22112202
문서:
| Electrical Characteristics | Model Number | PE-101 |
|---|---|---|
| Nominal voltage | 51.2V | |
| Nominal capacity | 105Ah | |
| Battery energy | 5376Wh | |
| Internal resistance | ≤ 8mΩ | |
| Cycle life | ≥6000 cycles (80% DOD) | |
| Self discharge per month | <3% |
| Charge cut off voltage | 58.4V |
| Charge mode | CC/CV (constant current/constant voltage) |
| Standard charge current | 20A |
| Max charge current | 50A |
| Discharge cut off voltage | 40V |

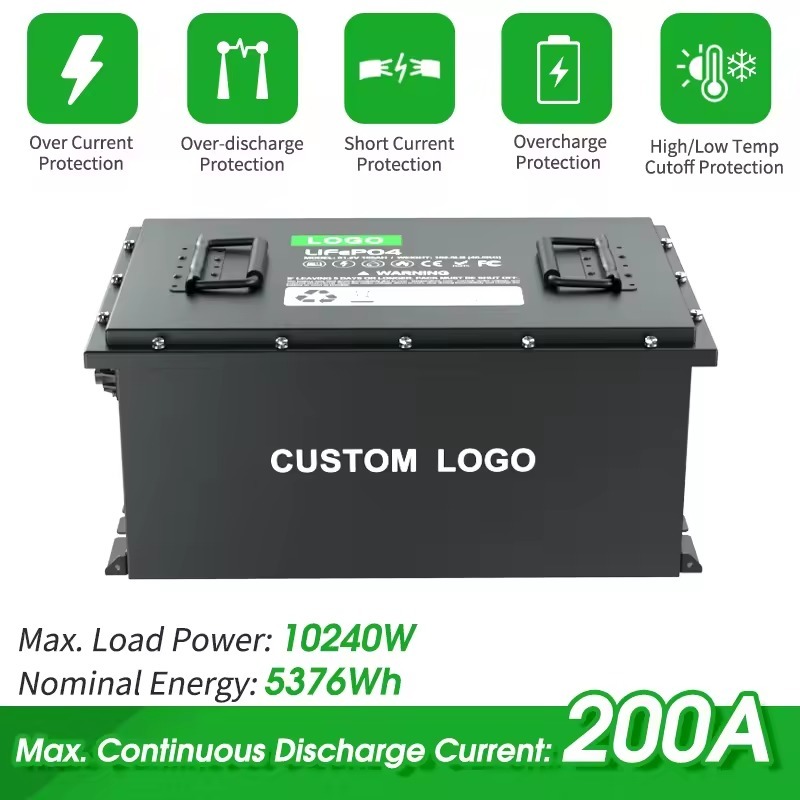

| Continuous discharge current | 200A |
| Charge temperature | 0℃ to 45℃ (32F to 113F) @60±25% RH |
| Discharge temperature | -5℃ to 60℃ @60±25% RH |
| Storage temperature | 0℃ to 40℃ (32F to 104F) @60±25% RH |
| Case | Metal case |

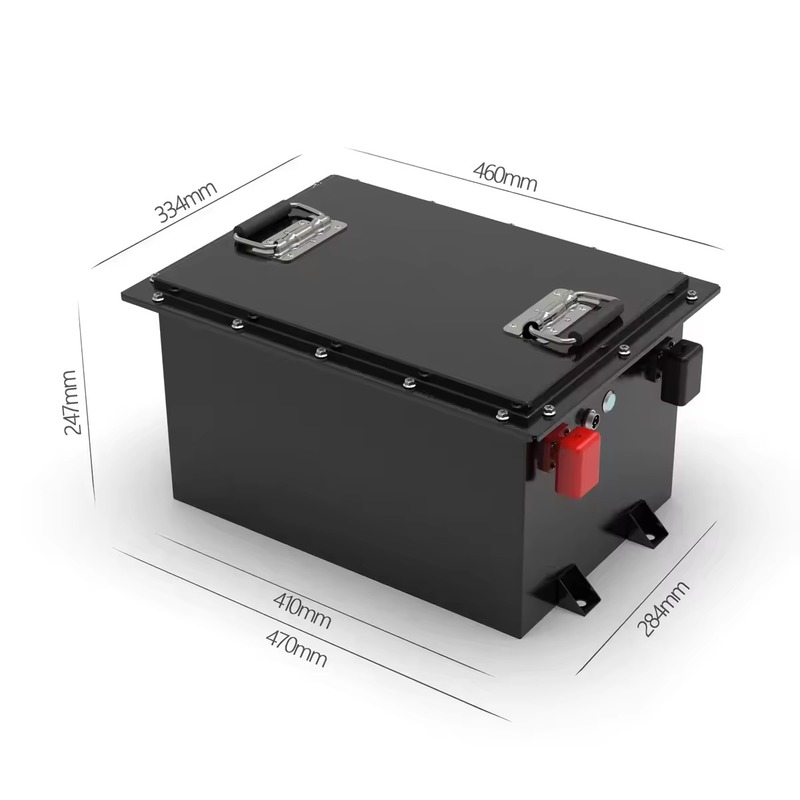

| Dimension | 470×334×247mm (L×W×H) |
| Terminal | M10 |
| Weight | 44.60kg |

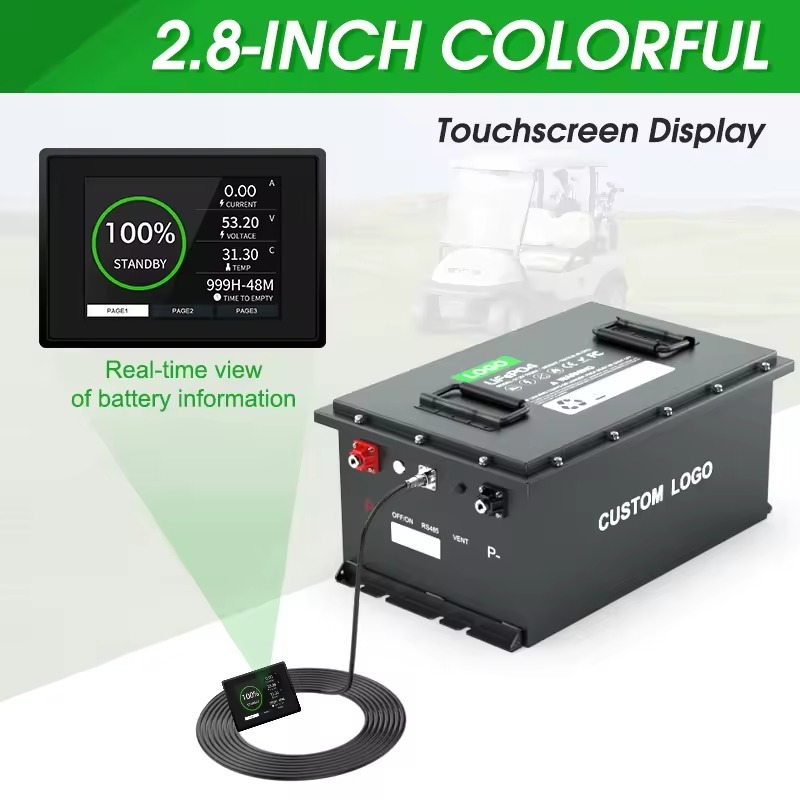

| Function | Custom LCD, App BT |
| Color | Black |
Pinsheng Energy is a High-Tech Enterprise with R&D located in Changsha City, Hunan Province, near Guangzhou. With a 4,000 square meter workshop and 121 employees, we specialize in developing and producing lithium batteries and battery system integration.
After years of development and research, we have established a complete industry chain from research and production to sales. Our lithium batteries feature longer cycle life, higher security, greater reliability, and superior energy density.
Our products are widely used in energy storage systems (off-grid wind & solar energy storage, telecommunication systems, UPS) and power systems (electric motorcycles, bikes, scooters, tricycles, golf carts, forklifts, and electric vehicles).
Pinsheng Energy maintains a strict quality guarantee system to ensure high-quality products and has earned a strong reputation both in China and abroad. We prioritize customer needs and continuously improve our product quality and services, dedicated to becoming a top OEM & ODM lithium battery manufacturer worldwide.
문의사항을 직접 저희에게 보내세요
